Product Description

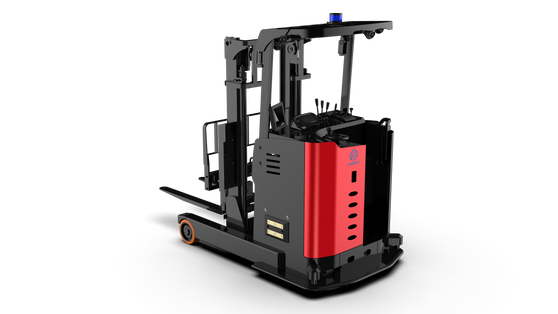

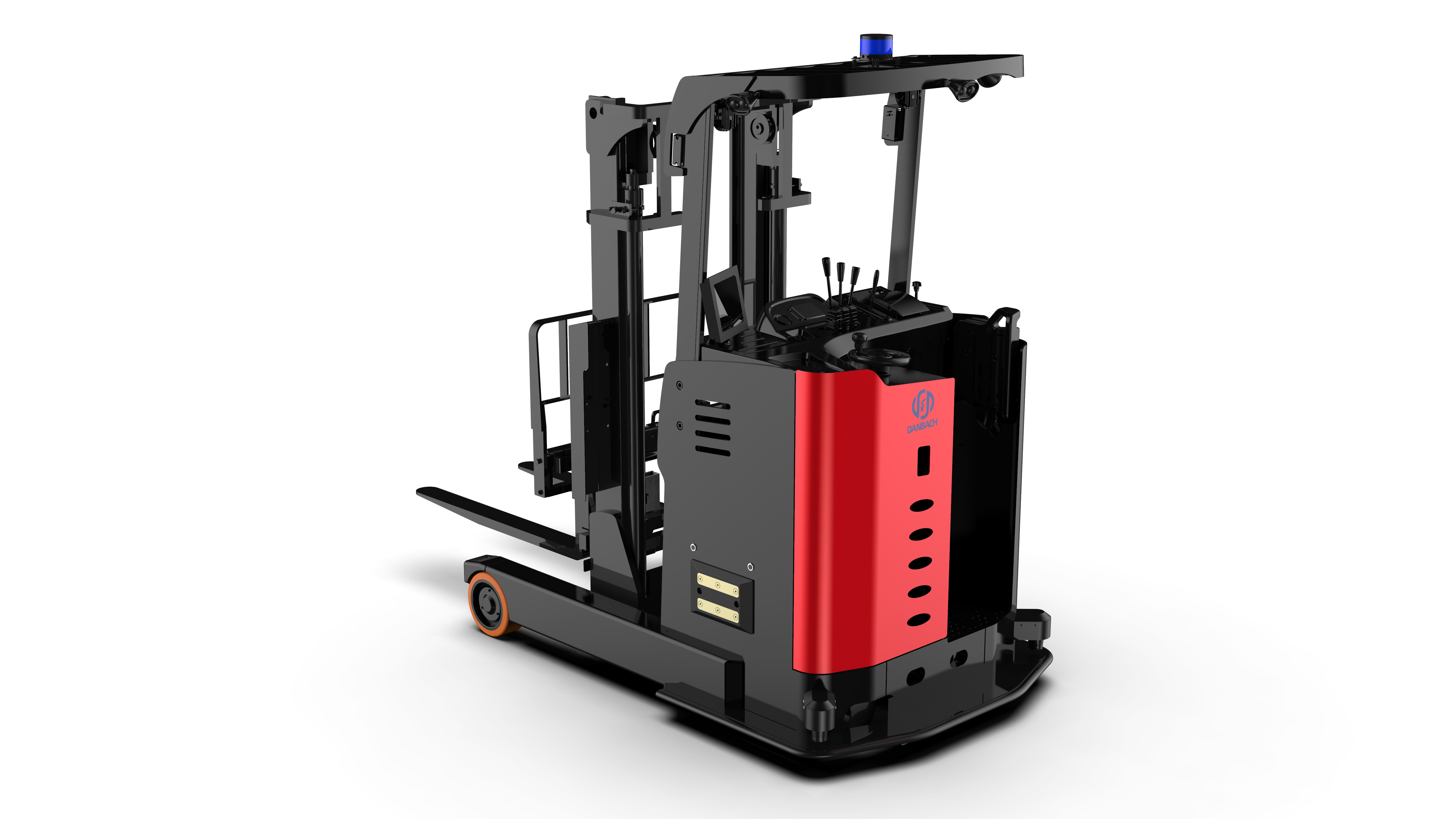

The Danbach C4 L Reach Truck AGV is the standard-fork, high-capacity sibling to the C4 Compact. Where the Compact series prioritizes narrow-aisle footprint, the L series adds standard-length forks, higher drivetrain power, and options up to 3,000 kg (6,614 lbs) rated capacity or 8 m (26.2 ft) lift height—making it the right choice for standard pallet fleets, high-bay warehouses, and heavier rack loads.
Mast carriage extends forks forward for rack pickup, then retracts the load into the truck body for transit. Load center-of-gravity stays inside the support polygon; dual front outriggers stabilize the high lift. Four configurations cover the standard warehouse reach-truck envelope.
Four Application-Specific Configurations
- C4-HL-16-460B: 1.6T, 15.1 ft (4.6 m) lift—standard racking, mid-capacity
- C4-HC-20-300B: 2T, 9.8 ft (3.0 m) lift with 2/4° mast tilt—low-rack with tilt stabilization
- C4-BJ-20-800B: 2T base / 1.5T at top, 26.2 ft (8 m) lift—high-bay storage
- C4-HL-30-460B: 3T (6,614 lbs), 15.1 ft lift, standard forks—heavy-duty racking
Highest Lift in the Line: 8 Meters
The C4-BJ-20-800B reaches 8 m (26.2 ft)—third-to-top-level racking in most high-bay distribution layouts. Ideal for DC and cold-storage high-density.
Heavy Capacity Option
The C4-HL-30-460B delivers 3,000 kg (6,614 lbs) rated capacity on standard forks—heavy enough for industrial pallet fleets, palletized machinery, and full-weight automotive and manufacturing loads.
Mast Tilt on 3 m Model
The C4-HC-20-300B adds 2/4° mast tilt for secure transport of unstable or top-heavy loads.
Dual Front Outriggers for Stability
Front outrigger legs extend the support polygon forward—stable rack pickup at full lift even with offset loads.
Laser Navigation, ±10 mm Repeatability
Natural-feature laser SLAM. Deploy without reflectors, stripes, or floor prep.
48V / 80V Lithium Drivetrain
Scales from 48V on the 2T models to 80V on the 3T heavy-capacity unit for sustained high-power operation.
Safety Guarantee
Dual front outriggers, safety scanners, electromagnetic brake, emergency stop, full auto/manual mode switchover.
Operational Functions
Rack pick and place at heights up to 8 m, heavy-pallet transport, high-bay storage and retrieval, automatic/manual mode switchover, WiFi fleet dispatch, mast-tilt load stabilization (300B model), outrigger-supported high-lift operation.
Core Sensors & Navigation
- Navigation: Laser (natural-feature SLAM)
- Positioning Accuracy: ±10 mm repeat
- Safety: Dual front outriggers, safety scanners, electromagnetic brake, emergency stop
Specifications — All L Reach Variants
| Parameter | HL-16-460B | HC-20-300B | BJ-20-800B | HL-30-460B |
|---|---|---|---|---|
| Rated Load | 3,527 lbs (1,600 kg) | 4,409 lbs (2,000 kg) | 4,409 lbs (2,000 kg) | 6,614 lbs (3,000 kg) |
| Load at Max Lift | — | — | 3,307 lbs (1,500 kg) @ 8m | — |
| Lift Height | 15.1 ft (4,600 mm) | 9.8 ft (3,000 mm) | 26.2 ft (8,000 mm) | 15.1 ft (4,600 mm) |
| Free Lift Height | 1,540 mm | 340 mm | 120 mm | 1,130 mm |
| Reach Distance | 24.9" (633 mm) | 19.9" (505 mm) | 23.0" (585 mm) | 29.7" (755 mm) |
| Mast Tilt | — | 2 / 4° | 2 / 4° | — |
| Overall L × W × H | 88.6" × 51.2" × 122.0" | 102.4" × 51.2" × 90.6" | 100.4" × 53.1" × 141.7" | 96.8" × 53.5" × 90.6" |
| Wheelbase | 1,350 mm | 1,550 mm | 1,515 mm | 1,650 mm |
| Fork Size | 1,150 × 122 × 40 mm | 1,070 × 122 × 40 mm | 1,070 × 120 × 40 mm | 1,150 × 125 × 45 mm |
| Fork Spacing | — | 244–882 mm | 240–770 mm | — |
| Min. Turning Radius | 64.4" (1,637 mm) | 71.0" (1,804 mm) | 69.7" (1,770 mm) | 75.8" (1,925 mm) |
| Navigation | Laser SLAM | |||
| Repeat Positioning | ±10 mm | |||
| Travel Speed | 1.5 m/s | |||
| Lift Speed | 260 mm/s | 260 mm/s | 100 mm/s | 280 mm/s |
| Gradeability | 5% | 10% | 10% | 5% |
| Travel Motor | 6 kW | 6.5 kW AC | 7 kW | 8 kW |
| Lift Motor | 11 kW | — | 20 kW | 15.5 kW |
| Voltage | 48 V | 48 V | 48 V | 80 V |
| Battery Capacity | 200 Ah | 200 Ah | 360 Ah | 272 Ah |
| Operation Mode | Automatic / manual | |||
Warranty & Support
The Danbach C4 L Reach Truck AGV series carries a 1-year manufacturer limited parts warranty from the date of commissioning. Under normal operating conditions and absent human-caused damage, Danbach provides free replacement parts for defective core components. Shipping costs on warranty replacements are the responsibility of the buyer.
Included with every unit:
- 24-hour response time on technical and service requests
- 24/7 after-sales hotline via Omni Ai Robot and Danbach’s global service network
- Free remote technical support via video conference, WhatsApp, and WeChat
- Navigation and control software updates
Warranty exclusions (buyer bears cost of replacement parts and shipping):
- Unauthorized or unnecessary switching to manual mode that results in operational damage
- Manually striking or disassembling critical components (sensors, cameras, antennas, control hardware)
- Operation outside published indoor environmental specifications
- Overloading beyond rated capacity at lift height
- Unauthorized modifications or use of non-original spare parts
- Expiration of the warranty period
On-site service is available on a time-and-materials basis: $/day installation engineer, $/day accompanying personnel, plus travel expenses. For the 8-meter high-bay and 3-ton heavy-capacity models, extended 24-/36-month warranty packages and on-site service contracts are strongly recommended and can be quoted per project. Contact richard@omniairobot.com.
