Product Description

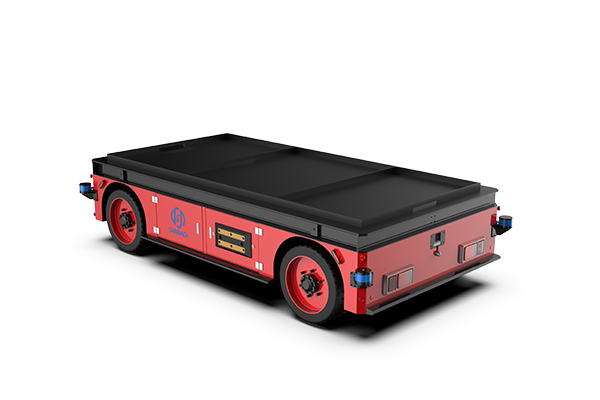

When pallets aren’t the problem—when you’re moving engine blocks, aerospace assemblies, finished vehicles, transformer cores, or heavy industrial workpieces—you need a platform that thinks in tons, not pounds. The Danbach X1 Heavy-Duty Flatbed AGV is a steer-by-wire industrial platform engineered in five capacity tiers from 5 metric tons (11,023 lbs) up to 80 metric tons (176,369 lbs), with LiDAR, BeiDou/GNSS, and fused navigation options for indoor factory and outdoor yard deployment.
Steer-by-wire chassis architecture, configurable in Ackermann, front-steer rear-drive, or dual-steer dual-drive layouts, delivers heavy-load maneuverability that straight-line AGVs can’t match. Optional lifting, roller conveyor, and tilting modules let you customize the platform to your exact process—transfer, assembly feed, yard shuttle, or heavy workpiece handling.
Five Capacity Tiers on a Common Platform
- X1-05: 5 metric tons (~11,023 lbs)—mid-size workpiece transfer and assembly feed
- X1-10: 10 metric tons (~22,046 lbs)—process linking, logistics movement
- X1-20: 20 metric tons (~44,092 lbs)—heavy industrial transfer
- X1-40: 40 metric tons (~88,184 lbs)—full trailer loads, large workpieces
- X1-80: 80 metric tons (~176,369 lbs)—port, terminal, and heavy industrial yard transport
Steer-by-Wire Chassis, Three Drive Configurations
Choose the drivetrain that fits your site: Ackermann for trailer-style long-haul yard movement, front-steer rear-drive for balanced handling, or dual-steer dual-drive for maximum maneuverability in tight production cells. All configurations deliver forward, reverse, straight-line, and curved-path travel.
Three Navigation Options
LiDAR for indoor SLAM, BeiDou/GNSS for outdoor yard operations, or fused navigation that hands off seamlessly between the two for cross-facility routes. ±50 mm navigation accuracy across the full capacity range.
20 km/h Operating Speed
Up to 20 km/h (12.4 mph) loaded or empty—fast enough for real yard and inter-building logistics, not just in-cell transfer.
Configurable Superstructure
Specify the payload interface your process needs: flatbed, lifting platform, roller conveyor, or tilting structure. Tell us what you’re moving and we’ll spec the platform.
24/7 Operation with Automatic Charging
Automatic docking and unattended charging when battery level drops. Scaled battery architecture from 153V to 400V across the capacity range, sized to support three-shift continuous duty.
Safety Guarantee
0.3–30 m adjustable obstacle detection sensor, mechanical anti-collision protection, and emergency stop. Dual voice + warning-light alarm on all units.
Typical Applications
Factories (internal transfer of oversized materials and workpieces), logistics centers (automated material movement between work zones), assembly lines (process linking and buffer transfer), ports and terminals (container transfer and heavy yard movement), railway yards (large-load transfer and route connection), airports (ground logistics and heavy transport support).
Core Sensors & Navigation
- Navigation: LiDAR / BeiDou-GNSS / fused
- Communication: WiFi / 5G / 4G
- Fleet Management: Danbach RCS (Robot Control System) with WMS/MES integration
- Safety: 0.3–30 m adjustable obstacle detection, mechanical anti-collision, emergency stop
Specifications — All Variants
| Parameter | X1-05 | X1-10 | X1-20 | X1-40 | X1-80 |
|---|---|---|---|---|---|
| Max Load | 11,023 lbs (5 T) | 22,046 lbs (10 T) | 44,092 lbs (20 T) | 88,184 lbs (40 T) | 176,369 lbs (80 T) |
| Dimensions (L×W×H) | 133.9" × 86.6" × 25.6" | 228.3" × 94.5" × 29.5" | 283.5" × 110.2" × 29.5" | 338.6" × 110.2" × 46.5" | 417.3" × 126.0" × 59.1" |
| Drive Mode | Ackermann / front-steer rear-drive / dual-steer dual-drive (configurable) | ||||
| Loaded Speed | 20 km/h (12.4 mph) | ||||
| Empty Speed | 20 km/h (12.4 mph) | ||||
| Turning Radius | 9.8 ft (3.0 m) | 15.7 ft (4.8 m) | 19.0 ft (5.8 m) | 23.6 ft (7.2 m) | 28.9 ft (8.8 m) |
| Battery | 153V / 210 Ah | 153V / 315 Ah | 153V / 420 Ah | 400V / 330 Ah | 400V / 550 Ah |
| Navigation | LiDAR / BeiDou-GNSS / fused | ||||
| Navigation Accuracy | ±50 mm | ||||
| Communication | WiFi / 5G / 4G | ||||
| Working Mode | 24 hour continuous | ||||
| Gradeability | ≤ 10% | ||||
| Safety Sensing | 0.3–30 m adjustable | ||||
| Charging | Automatic docking / manual | ||||
| Safety Protection | Obstacle detection sensor, mechanical anti-collision, emergency stop | ||||
Warranty & Support
The Danbach X1 Heavy-Duty Flatbed AGV carries a 1-year manufacturer limited parts warranty from the date of commissioning. Under normal operating conditions and absent human-caused damage, Danbach provides free replacement parts for defective core components. Shipping costs on warranty replacements are the responsibility of the buyer.
Included with every unit:
- 24-hour response time on technical and service requests
- 24/7 after-sales hotline via Omni Ai Robot and Danbach’s global service network (50+ service partners worldwide)
- Free remote technical support via video conference, WhatsApp, and WeChat
- Software and navigation stack updates
Warranty exclusions (buyer bears cost of replacement parts and shipping):
- Unauthorized or unnecessary switching to manual mode that results in operational damage
- Manually striking or disassembling critical components (sensors, cameras, antennas, control hardware)
- Operation outside published environmental specifications
- Unauthorized modifications or use of non-original spare parts
- Expiration of the warranty period
On-site service is available on a time-and-materials basis: $/day installation engineer, $/day accompanying personnel, plus travel expenses. Given the high capital value and custom engineering typical of this series, extended 24-, 36-, and 60-month warranty packages plus on-site service contracts are strongly recommended—quoted per project scope. Contact richard@omniairobot.com.
