Product Description

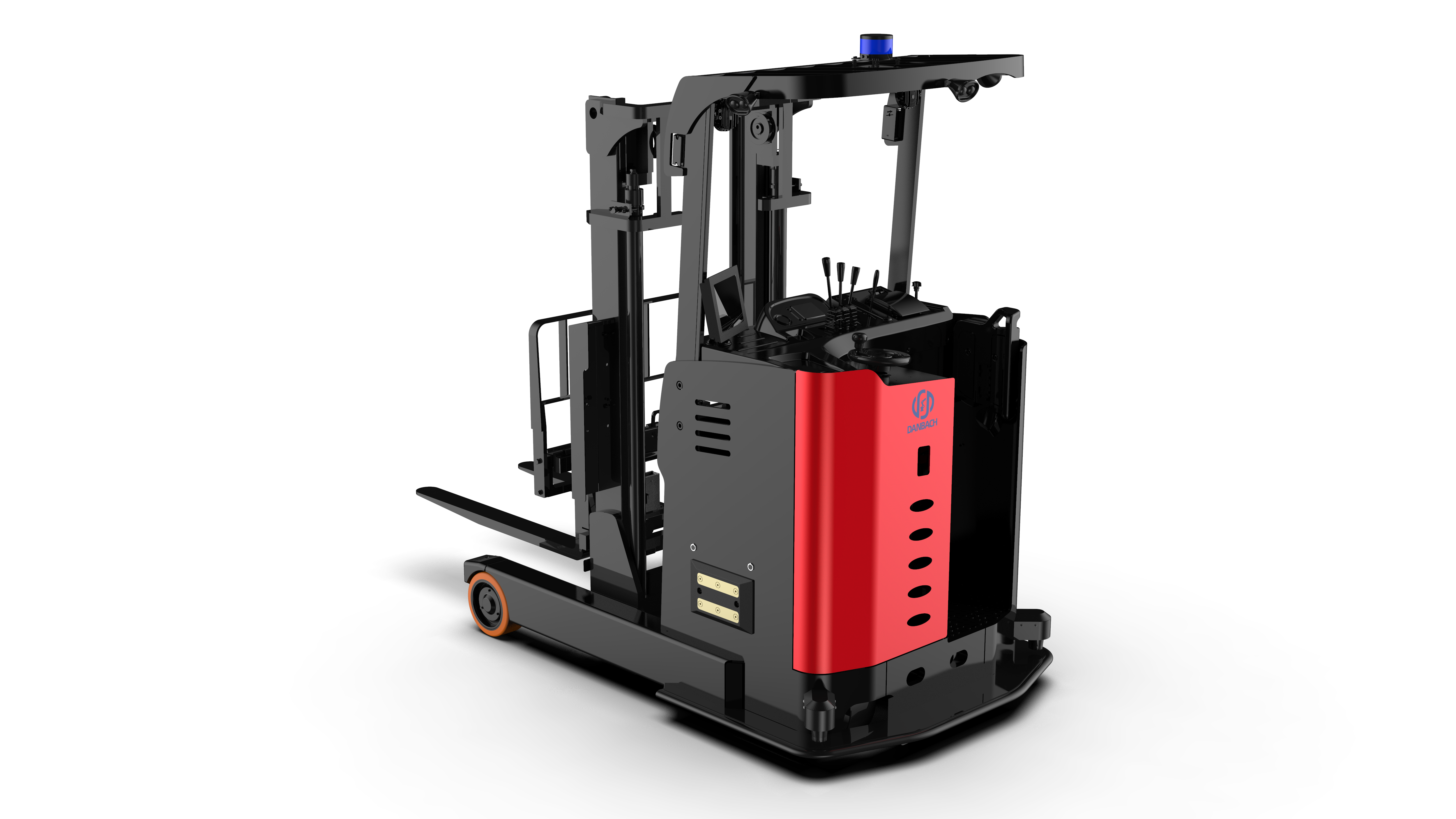

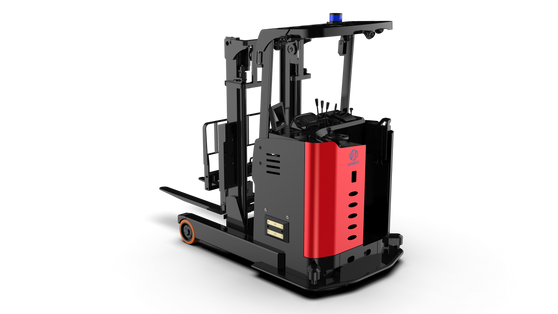

The Danbach C4 Compact Reach Truck AGV merges the strengths of Danbach’s C2 Pallet Stacker and C3 Counterbalanced Stacker into a single narrow-aisle automation platform. Its mast carriage extends the forks forward of the front wheels for pick/place, then retracts the load into the truck body for transit—keeping the load center of gravity inside the support polygon and dramatically reducing the aisle width needed to operate.
Automate racking aisles that previously required a manned narrow-aisle reach truck—with none of the operator training, injury risk, or wage overhead. The C4 Compact handles non-standard pallets, closed pallets, and enclosed racks that defeat conventional pallet stackers.
Four lift-height / capacity tiers cover applications from low-rack staging to 5.5 m (18 ft) storage.
Four Lift-Height Tiers
- C4-HC-16-270B: 1.6T (3,527 lbs), 8.9 ft (2.7 m) lift—low-rack and staging
- C4-HC-20-330B: 2T (4,409 lbs), 10.8 ft (3.3 m) lift—mid-level racking
- C4-HC-20-450B: 2T (4,409 lbs), 14.8 ft (4.5 m) lift—standard warehouse racking
- C4-HC-20-550B: 2T (4,409 lbs), 18.0 ft (5.5 m) lift—high-bay storage
Narrow-Aisle Reach Geometry
Forks extend forward for rack pickup, then retract with the load for transit. Aisle requirements shrink dramatically versus counterbalanced designs—ideal for high-density warehouse layouts.
Industry-Leading Laser SLAM Navigation
Natural-feature laser navigation means ±10 mm repeat positioning accuracy without reflectors, tape, or floor markings. Maps your facility as-is.
Dual-Mode Operation
Full automatic autonomous operation for production duty, plus manual mode for commissioning, relocation, and exception handling—no separate manual forklift needed.
Handles Non-Standard Pallets
Engineered for pallets, closed pallets, and enclosed racks that pallet stackers and counterbalanced stackers struggle with.
Electromagnetic Braking & Polyurethane Wheels
Regenerative AC drive with electromagnetic brake for precise stopping. Polyurethane wheels for quiet, non-marking operation on indoor concrete floors.
Safety Guarantee
Front outriggers for stability, safety scanners, emergency stop, electromagnetic brake, and dual-mode auto/manual switchover.
Operational Functions
Narrow-aisle rack pick and place, automated high-bay storage and retrieval, non-standard pallet handling, closed pallet and enclosed rack operation, automatic/manual driving, WiFi fleet integration, dual outrigger support for stability at full lift.
Core Sensors & Navigation
- Navigation: Laser (natural-feature SLAM)
- Communication: WiFi
- Drive Control: AC regenerative with electromagnetic brake
- Safety: Front outriggers, safety scanners, emergency stop
Specifications — All Compact Reach Variants
| Parameter | HC-16-270B | HC-20-330B | HC-20-450B | HC-20-550B |
|---|---|---|---|---|
| Rated Capacity | 3,527 lbs (1,600 kg) | 4,409 lbs (2,000 kg) | 4,409 lbs (2,000 kg) | 4,409 lbs (2,000 kg) |
| Capacity at Max Lift | — | — | 3,417 lbs (1,550 kg) | 2,756 lbs (1,250 kg) |
| Lift Height | 8.9 ft (2,700 mm) | 10.8 ft (3,300 mm) | 14.8 ft (4,500 mm) | 18.0 ft (5,500 mm) |
| Overall Length | 90.6" (2,300 mm) | 98.4" (2,500 mm) | 98.4" (2,500 mm) | 98.4" (2,500 mm) |
| Overall Width | 47.2" (1,200 mm) | 43.3" (1,100 mm) | 43.3" (1,100 mm) | 43.3" (1,100 mm) |
| Overall Height | 86.6" (2,200 mm) | 91.7" (2,330 mm) | 126.0" (3,200 mm) | 110.2" (2,800 mm) |
| Fork Outer Width | 7.9"–29.5" (200–750 mm) adjustable | |||
| Fork Size | 35 × 100 × 1,070 mm | 45 × 100 × 1,070 mm | 45 × 100 × 1,070 mm | 45 × 100 × 1,070 mm |
| Reach Distance | 23.2" (590 mm) | |||
| Min. Turning Radius | 63.0" (1,600 mm) | 70.9" (1,800 mm) | 70.9" (1,800 mm) | 70.9" (1,800 mm) |
| Navigation | Laser SLAM | |||
| Positioning Accuracy | ±10 mm | |||
| Operation Mode | Automatic / manual | |||
| Travel Speed (loaded/unloaded) | 1.5 / 1.5 m/s | |||
| Lift Speed (loaded/unloaded) | 0.040 / 0.045 m/s | |||
| Gradeability (loaded/unloaded) | 8 / 15% | 6 / 14% | 6 / 14% | 6 / 14% |
| Drive / Lift Motor | 1.5 kW / 3 kW | |||
| Wheel Material | Polyurethane | |||
| Battery | 24V / 200 Ah | |||
| Brake | Electromagnetic | |||
| Control Mode | AC regenerative | |||
Warranty & Support
The Danbach C4 Compact Reach Truck AGV series carries a 1-year manufacturer limited parts warranty from the date of commissioning. Under normal operating conditions and absent human-caused damage, Danbach provides free replacement parts for defective core components. Shipping costs on warranty replacements are the responsibility of the buyer.
Included with every unit:
- 24-hour response time on technical and service requests
- 24/7 after-sales hotline via Omni Ai Robot and Danbach’s global service network
- Free remote technical support via video conference, WhatsApp, and WeChat
- Firmware, navigation, and software updates
Warranty exclusions (buyer bears cost of replacement parts and shipping):
- Unauthorized or unnecessary switching to manual mode that results in operational damage
- Manually striking or disassembling critical components (sensors, cameras, antennas, control hardware)
- Operation outside published indoor environmental specifications
- Overloading beyond rated capacity at lift height
- Unauthorized modifications or use of non-original spare parts
- Expiration of the warranty period
On-site service is available on a time-and-materials basis: $/day installation engineer, $/day accompanying personnel, plus travel expenses. Extended warranty packages and service contracts available—contact richard@omniairobot.com.
