Product Description

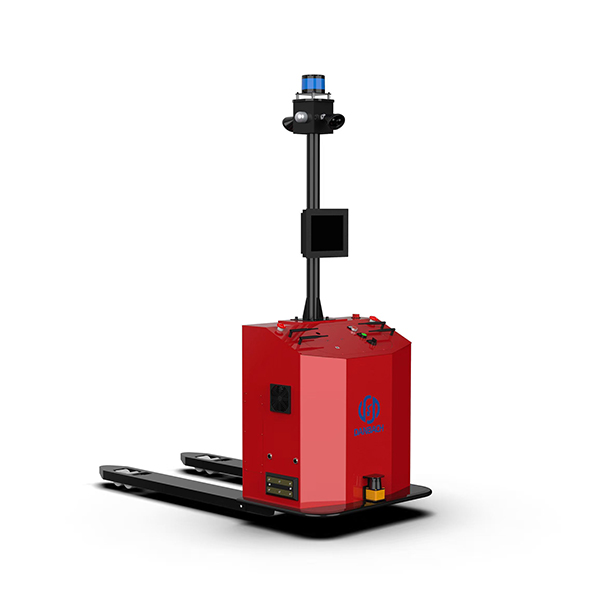

The C19 is Danbach’s laser-radar pallet mover built for fast deployment and zero infrastructure modification. Rated at 1,500 kg (3,307 lbs), it navigates by natural-feature laser SLAM—no reflective plates, no magnetic stripes, no floor prep. Deploy a C19 across multi-path point-to-point transport routes in a fraction of the time required by legacy AGV installs.
Three versions let you match the platform to your integration depth: Standalone for simple single-machine deployment, Standard with 5G/WiFi fleet integration, and Smart with onboard pallet identification for fully autonomous pick/drop without fixed pallet positions.
Reflector-Free Laser Navigation
True natural-feature SLAM. The C19 maps your facility using permanent structural features—walls, racks, columns—so there’s nothing to install, maintain, or replace when you rearrange the layout.
Three Deployment Tiers
- C19-15-A Standalone: Runs solo, no network integration required. Ideal for single-route transport.
- C19-15-B Standard: 5G / industrial WiFi integration for fleet dispatch, WMS connection, and multi-vehicle coordination.
- C19-15-C Smart: All Standard features plus onboard pallet identification—picks pallets without requiring exact fixed positioning.
Compact & Aisle-Friendly
At 850 mm (33.5") wide with a 1.5 m (4.9 ft) turning radius, the C19 works in VNA-adjacent aisles where wider AGVs can’t fit.
Rapid Deployment
Simple commissioning—natural-feature SLAM means mapping a facility typically takes hours, not days. No civil work required.
24/7 Lithium Operation
24V 64Ah lithium system supports three-shift continuous duty. Automatic charging, manual charging, and hot-swap all supported.
Safety Guarantee
Forward obstacle detection, mechanical touch guard, emergency stop button, plus dual voice + warning-light alarm.
Operational Functions
Multi-path point-to-point transport, standard pallet pick/drop, fleet-wide dispatch (B/C versions), pallet identification without fixed positioning (C version), horizontal material transfer, automatic/manual charging, automatic/manual driving switchover.
Core Sensors & Navigation
- Navigation: Laser radar (natural-feature SLAM)—reflector-free
- Communication (B/C versions): 5G / WiFi
- Pallet ID (C version): Onboard vision/laser pallet identification
- Safety: Forward obstacle sensor, mechanical touch bumper, e-stop
Specifications — All Variants
| Parameter | C19-15-A Standalone | C19-15-B Standard | C19-15-C Smart |
|---|---|---|---|
| Type | Pallet Handling AGV | Pallet Handling AGV | Pallet Handling AGV |
| Load Capacity | 3,307 lbs (1,500 kg) | 3,307 lbs (1,500 kg) | 3,307 lbs (1,500 kg) |
| External Size (L×W×H) | 66.9" × 33.5" × 74.8" | Same | Same |
| Lift Height | 4.7" (120 mm) | 4.7" (120 mm) | 4.7" (120 mm) |
| Navigation | Laser | Laser | Laser |
| Communication | — | 5G / WiFi (optional) | 5G / WiFi (optional) |
| Pallet Identification | — | — | Yes |
| Driving Direction | Forward/backward, straight & curved, left | ||
| Driving Speed | 90 m/min (~3.0 mph) | ||
| Stop / Navigation Accuracy | ±20 mm | ||
| Work Method | 24 hour continuous | ||
| Gradeability | ≤ 6% | ||
| Turning Radius | 4.9 ft (1.5 m) | ||
| Battery | 24V / 64Ah lithium | ||
| Charging | Automatic / manual / battery swap | ||
| Alarm Form | Voice + warning light (dual alarm) | ||
| Safety | Forward obstacle sensor, mechanical touch bumper, emergency stop | ||
Warranty & Support
The Danbach C19 series carries a 1-year manufacturer limited parts warranty from the date of commissioning. Under normal operating conditions and absent human-caused damage, Danbach provides free replacement parts for defective core components. Shipping costs on warranty replacements are the responsibility of the buyer.
Included with every unit:
- 24-hour response time on technical and service requests
- 24/7 after-sales hotline via Omni Ai Robot and Danbach’s global service network
- Free remote technical support via video conference, WhatsApp, and WeChat
- Mapping, navigation, and firmware updates
Warranty exclusions (buyer bears cost of replacement parts and shipping):
- Unauthorized or unnecessary switching to manual mode that results in operational damage
- Manually striking or disassembling critical components (sensors, cameras, antennas, control hardware)
- Operation outside published environmental specifications
- Unauthorized modifications or use of non-original spare parts
- Expiration of the warranty period
On-site service is available on a time-and-materials basis: $/day installation engineer, $/day accompanying personnel, plus travel expenses. Extended warranty packages and service contracts available—contact richard@omniairobot.com.
