Product Description

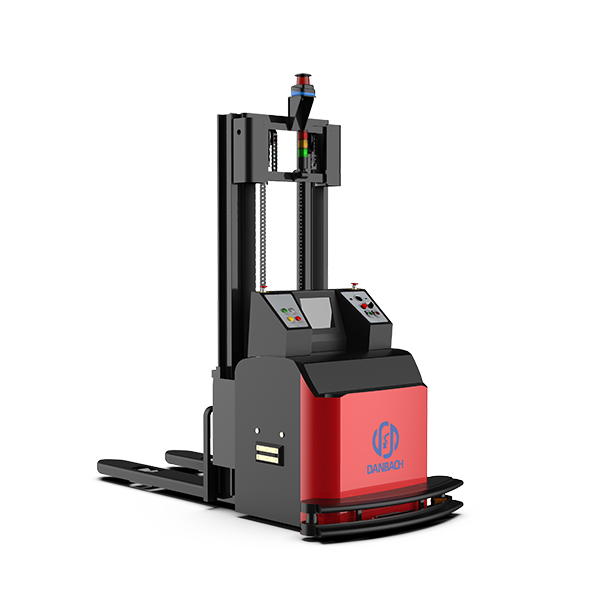

Pair advanced laser navigation with a rugged steering-wheel chassis and you get a pallet handling AGV that drops into your existing workflow without tearing up the floor. The Danbach C1 replaces traditional manual forklifts for point-to-point pallet transport, delivering ±10 mm navigation accuracy, customizable load capacity from 800 kg to 2,000 kg (1,763 to 4,409 lbs), and 24/7 operation on a single lithium battery platform. Connect it to your facility via industrial WiFi or 5G—no magnetic tape, no reflectors, no infrastructure overhaul.
High Accuracy
Laser and magnetic navigation deliver ±10 mm stop and navigation accuracy—precise enough for tight rack placement and automated line feed.
Customizable Load Capacity
Specify anywhere from 800 kg (1,763 lbs) to 2,000 kg (4,409 lbs). Euro pallets, US 48×40 pallets, or non-standard custom pallets—the C1 platform adapts to your existing material.
5G / WiFi Autonomous Driving
Industrial WiFi or 5G mobile networks handle fleet communication and dispatch. No buried wires, no stripes to maintain.
Compact & Flexible
At just 850 mm (33.5") wide with a 1.8 m (5.9 ft) turning radius, the C1 threads through tight warehouse aisles where full-size manned forklifts simply can’t go.
24/7 Operation
Lithium battery with automatic charge, manual charge, or hot-swap options. Designed for three-shift continuous duty.
Cost-Effective Fleet Economics
Replace the ongoing labor cost of manned forklifts with a platform engineered for single-sided pallet handling at a high cost-performance ratio.
Safety Guarantee
Multi-layer protection: forward obstacle detection sensor, mechanical touch guard, 360° emergency stop, and 0–3 m adjustable safety sensing range with sub-20 mm emergency braking distance.
Operational Functions
Automatic pallet pick and drop, point-to-point horizontal transportation, multi-vehicle fleet dispatch, material and shelf detection, safety obstacle avoidance, automatic or manual charging, and optional outdoor factory-to-factory logistics via Beidou + 3D multi-line LiDAR + inertial navigation fusion.
Core Sensors & Navigation
- Navigation: Laser + magnetic (choose per environment) with optional Beidou + 3D multi-line LiDAR + inertial fusion for outdoor routes
- Communication: 5G / industrial WiFi
- Safety sensing: 0–3 m adjustable scanner range, forward obstacle detection, mechanical touch bumper, e-stop
Specifications
| Parameter | Value |
|---|---|
| Model | C1-HL |
| Type | Pallet Handling Forklift AGV |
| External Size (L × W × H) | 98.8" × 33.5" × 82.7" (2,510 × 850 × 2,100 mm) — customizable |
| Load Capacity | 1,763–4,409 lbs (800–2,000 kg) — customizable |
| Lifting Height | 4.9" (125 mm) |
| Navigation Method | Laser / magnetic |
| Communication | 5G / WiFi |
| Driving Direction | Forward / backward, straight & curved, left & right |
| Driving Speed | 90 m/min (~3.0 mph) |
| Stop Accuracy | ±10 mm |
| Navigation Accuracy | ±10 mm |
| Work Method | 24 hour continuous |
| Gradeability | ≤ 8% |
| Turning Radius | ≤ 5.9 ft (1.8 m) |
| Battery Capacity | Standard 8-hour runtime — high-capacity customizable |
| Charging Method | Automatic charge / manual charge / battery swap |
| Safe Sensing Range | 0–3 m adjustable, emergency braking distance < 20 mm |
| Alarm Form | Voice + warning light (dual alarm) |
| Safety Protection | Forward obstacle sensor, mechanical touch guard, emergency stop button |
Warranty & Support
The Danbach C1 Pallet Handling Forklift AGV carries a 1-year manufacturer limited parts warranty from the date of commissioning. Under normal operating conditions and absent human-caused damage, Danbach provides free replacement parts for defective core components. Shipping costs on warranty replacements are the responsibility of the buyer.
Included with every unit:
- 24-hour response time on technical and service requests
- 24/7 after-sales hotline via Omni Ai Robot and Danbach’s global service network (50+ service partners worldwide)
- Free remote technical support via video conference, WhatsApp, and WeChat
- Firmware and navigation software updates for the contracted life of the unit
Warranty exclusions (buyer bears cost of replacement parts and shipping):
- Unauthorized or unnecessary switching to manual mode that results in operational damage
- Manually striking or disassembling critical components (sensors, cameras, antennas, control hardware)
- Operation outside published environmental specifications
- Unauthorized modifications or use of non-original spare parts
- Expiration of the warranty period
On-site service is available on a time-and-materials basis: Costs will be $/day installation engineer, $/day accompanying personnel, plus travel expenses (airfare, visa, ground transport). Extended warranty packages (24/36/60-month) and comprehensive service contracts available—contact richard@omniairobot.com
